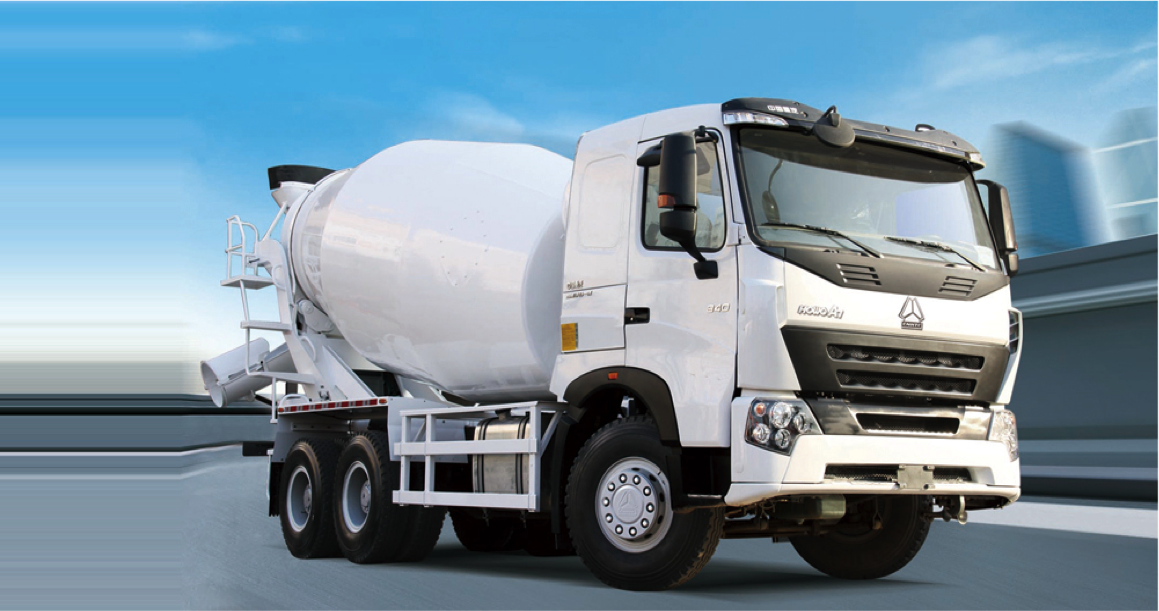

SINOTRUK A7 6X4 CONCRETE MIXER TRUCK

  • SINOTRUK

Diesel: 4-stroke direct injection diesel engine; Engine model: WD615.47, Euro II emission standard; 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4 strokes; Maximum output: 371hp (273Kw) at 2200rpm; Maximum torque: 1470Nm at 1300-1600rpm; Number of cylinder: 6; Displacement: 9.726L; Bore/Stroke: 126/130mm; Ignition Sequence: 1-5-3-6-2-4

Exterior Features

  • Max. Input Tonrque: 1900NM
  • Model: HW19710 10F/2R Manual Gearbox
  • Transmission Ratio Gear 10: 1
  • Transmission Ratio Gear 1: 14.28
  • Transmission Ratio Gear 2: 10.62
  • Transmission Ratio Gear 3: 7.87
  • Transmission Ratio Gear 4: 5.88
  • Transmission Ratio Gear 5: 4.38
  • Transmission Ratio Gear 6: 3.27
  • Transmission Ratio Gear 7: 2.43
  • Transmission Ratio Gear 8: 1.8
  • Transmission Ratio Gear 9: 1.34
  • Transmission Ratio Reverse: 13.91

Interior Features

  • 4-point support fully floating suspension+air bag+stabilizer
  • A7-W wide model cab with air conditioner
  • CAN+VDO dashboard
  • Double locking structure safety belt
  • Driver's chair: air bag chair
  • Electric rear view mirror with electric heating
  • Manual-electric integrated cabin lifting
  • MP5 entertainment

Safety Features

  • Brake: Drum Ф420×185
  • Differential device: Inter-wheel and inter-axle
  • Input flange: Ф180
  • Lubricants (L): GL5 85W-90
  • Min rim size (inch): 20
  • Model: HC16 (Tandem axle)
  • Rated load (kg): 2×16000
  • Ratio: 5.73
  • Spring gage (mm): 1020
  • Type: Central single reduction + hub reduction & welded axle housing
  • Weight (Without lubricants)(kg): 1st axle:860/2nd axle:800
  • Wheel bolt (mm): Ф335-10×M22×1.5
  • Wheel tread (mm): 1850

Extras

  • Brake: Air drum brake
  • Camber angle (°): 1
  • Kingpin inclination (°): 3
  • Maximum steering angle of inner wheel (°): 45
  • Min. rim size (inch): 20
  • Model: HF9
  • Rated load (kg): 9000
  • Spring gage (mm): 850~900

Tyre, Steering & Electrics

  • Rims: 8.5-20, 10 hole-steel
  • Tyres: 12.00R20 Radial Tyre, 10+1pcs
  • ZF power steering, model ZF8098,
  • Hydraulic steering with power assistance
  • Ratio: 26.2
  • Operating voltage: 24 V, negative grounded
  • Starter: 24 V, 5.4 Kw
  • Alternator: 3-phrase, 28V, 1000W
  • Batteries: 2 x 12 V, 165 Ah
  • Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Breaks & Performance

  • Service brake: dual circuit compressed air brake
  • Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
  • Auxiliary brake: engine exhaust brake
  • Maximum driving speed (km/h): 75
  • Maximum gradability (%): 35
  • Minimum turning circle (m): 17

Dimensions, Weight (KG) & Tanks

  • Wheel base: 3825+1350
  • Front wheel track: 2022
  • Rear wheel track: 1830
  • Front/Rear overhang: 1500/1300
  • Approach/Departure angle (°): 16/35
  • Overall Dimension: 9050×2496×3810 (L×W×H)
  • Permissible loading capacity: 32000
  • Chassis dead weight: 15200
  • Front axles loading capacity: 9000
  • Rear axles loading capacity: 2×16000
  • Ball Drum: CIMC
  • Agitating Capacity: 10m3
  • Drum Slope: 11°
  • Drum rotating speed: 0-16r/min
  • Water tank volume: 400 liters
  • Discharged remain ratio: <0.5%
  • Reducer: PMP P90
  • Hydraulic pump: PMP M90
  • Hydraulic Motor: PMB 6.5
